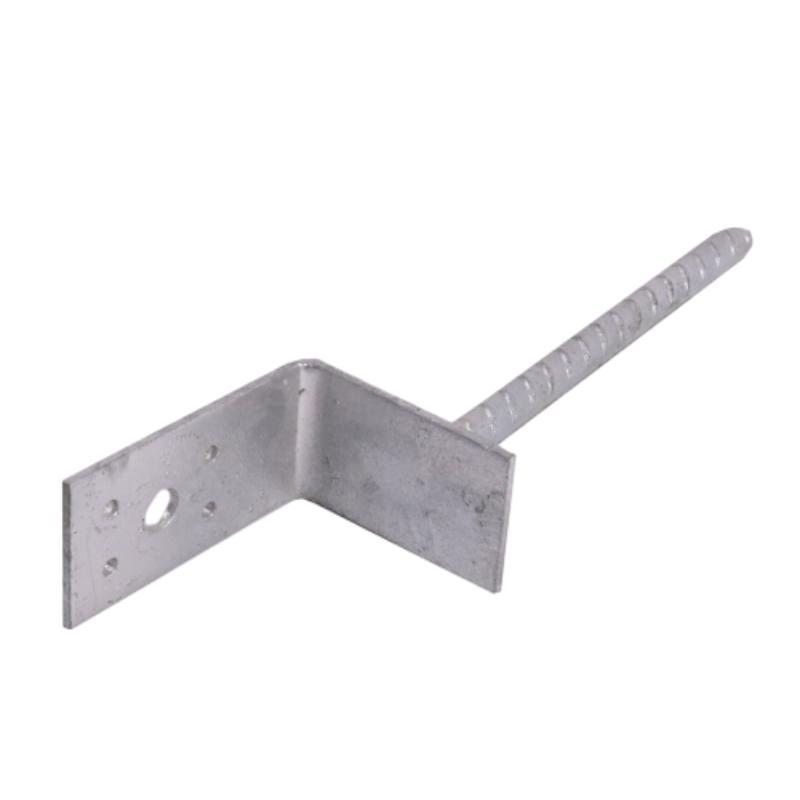

L -Form Support

Wood post support is a post anchor that provides posts with the necessary protection against termites and moisture.
It provides a quick and affordable way to secure a wood post to a concrete surface.
Good quality and design make installation easy. In addition, the zinc coating and powder coating means that it is corrosion resistant so it can be used for a long time, making it more cost effective for you.

Quote at Once

< >

Description

• Material: galvanised steel, carbon steel
• Surface treatment: hot dip galvanised, powder coated

Features

• Easy to install.
• Good quality and design.
• Environment & Economy.
• Can be used in wet environment.
• Enhanced post stability.
• Complies with building code requirements.
• Provides protection over time.
• Ideal for wood posts. Protects against rust.

Application

• Connection of timber construction
• Solar power systems
• Fence & post
• Banners & board
• Garden and leisure

Package

• Standard Pallets with cartons and accept your custom package

Art No.	Size(MM)
	A	B	C	D	E
UF01	60	60	120	4	16*200
UF02	60	60	120	4	16*200
UF03	80	60	120	5	20*200
UF04	90	60	120	5	20*200
UF05	100	60	120	5	20*200
UF06	120	60	120	5	20*200
LF01	80	90	130	5	20*200

Art No.	Size(inch)
	A	B	C	D	E
UF01	2.36	2.36	4.72	0.15	0.63*7.87
UF02	2.36	2.36	4.72	0.15	0.63*7.87
UF03	3.14	2.36	4.72	0.19	3/4*7.87
UF04	3.54	2.36	4.72	0.19	3/4*7.87
UF05	3.93	2.36	4.72	0.19	3/4*7.87
UF06	4.72	2.36	4.72	0.19	3/4*7.87
LF01	3.14	3.54	5.11	0.19	3/4*7.87
